STS Series
ホーム

Hybrid Inverter

STS Series

STS Series
STS Series
STS Series

STS Series

The State Transfer Switch (STS) Box is a cutting-edge switching solution designed for use in commercial and industrial energy storage systems. This system enables precise control of inverters, allowing seamless transitions between grid-tied and off-grid modes. In the event of a grid outage, the inverter seamlessly switches to off-grid mode, providing power to critical loads through solar panels or batteries. When grid power is restored, the inverter smoothly transitions back to grid-tied operation. The STS is versatile, supporting connections with generators and accommodating large loads such as heat pumps and motors. During grid-tied operation, the STS supports a maximum load capacity of 138kW (200A) for the backup interface. This robust solution ensures continuous and reliable power supply, offering flexibility and efficiency in energy management.

今すぐお問い合わせください

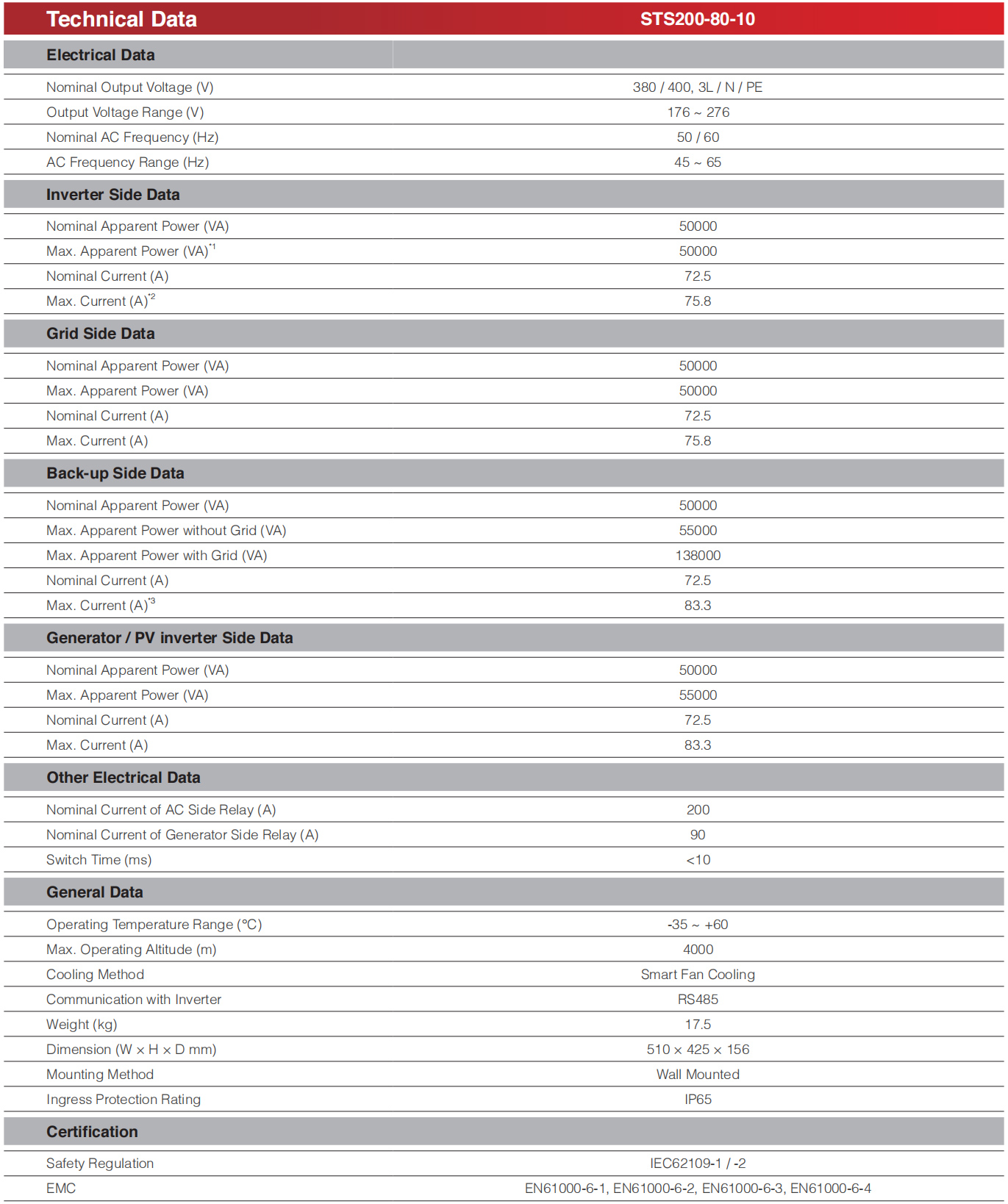

Product Details

STS Series

*1: When the inverter is operating in the off-grid state, Max. Apparent Power of Inverter Side can be reached 55kW.

*2: When the inverter is operating in the off-grid state, Max. Current of Inverter Side can be reached 83.3A.

*3: When the grid is on, the Max. Current of Backup side can be reached 200A.

*: Please visit GoodWe website for the latest certificates.
