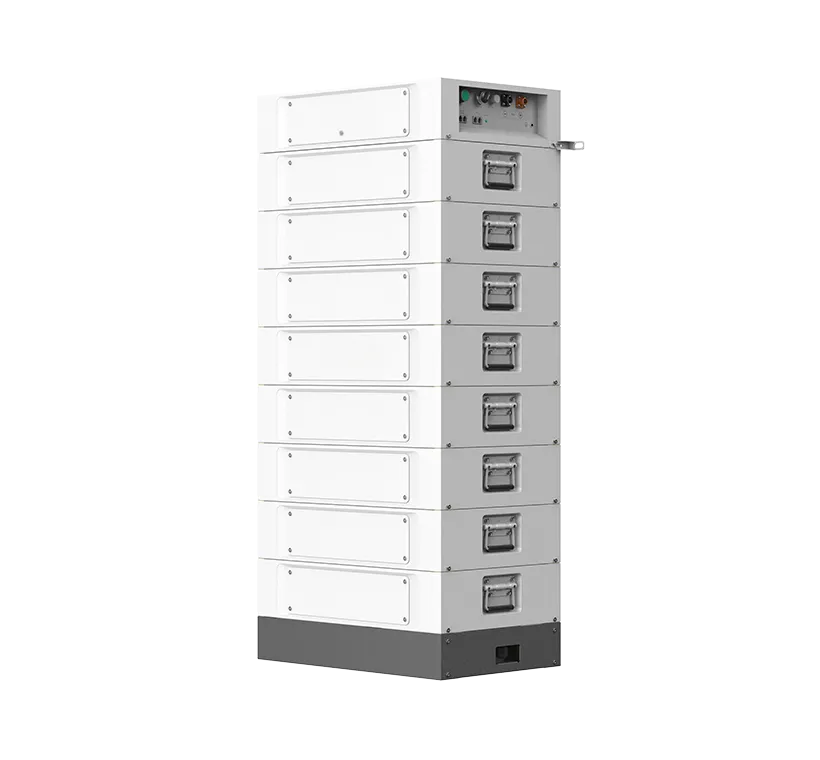

Stack100 is suitable for residential and small commercial and industrial scenarios.Rackless and stackable design is easy to plug and play. lt supports 12 clusters inparallel with a maximum capacity of 921kWh and supports 1C charge/discharge.
Product Details
| Model | STACK100 |
| Battery Type | LiFePO4 |
| Module Voltage/Capacity | 51.2V/100Ah |
| Single Module Weight | 47Kg |
| System Modules Serial Number | 3~15 |
| System Energy Range | 15.36-76.8kWh |
| Operating Voltage | 134-864V |
| Recommended Charge/Discharge Current | 50A (0.5C) |
| Max.Charge/Discharge Current | 100A (1C) |
| Peak Discharge Current(2min 25°C) | 125A(1.25C) |
| Depth of Discharge | 95% |
| Communication | CAN/RS485 |
| Cycle Life | 28000 cycles /10 Years |
| Max. Single Cluster Dimension[W*D*H](mm) | 591*390*1700mm-11 module |
| Charging Temp. Range | 0~55℃C |
| Discharging Temp. Range | -20~55°C |
| Protection Level | IP20 |
| Fire Protection System | Built-in aerosol fire extinguisher |
| Installation method | Stack type |
| Cooling method | Forced wind cooling |
| WiFi Module | Built-in WlFl module; APP OTA function |
| Certification & Safety Standard | CE-EMC/CE-RED/IEC62619/IEC63056/IEC62477/IEC62040/UN38.3 |
| Compatible Inverters | Solis/Deye/SOLINTEG/Growatt/Goodwe/MEGAREVO/SAJ/Sinexcel/ATESS/Hoymiles etc. |
*Test conditions: 0.2C Charging & Discharging. @25°C, 95% DOD
Note: This specification is only suitable for Vietnam Market.
